DZ47-125 High Current Circuit Breaker
Classification:
Product Introduction
Short circuit protection. Overload protection. Isolation function
Product Details

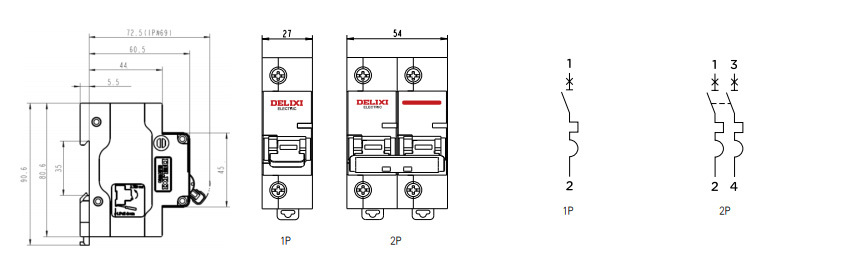

Shape and mounting dimensions

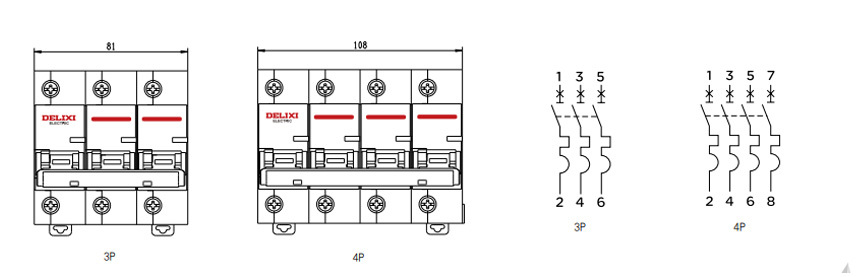

Dimensions&wiring diagram
Product Overview
■Main Functions
Short circuit protection. Overload protection. Isolation function
■Conformity with standards
GB/T14048.2 IEC60947-2
■Conformity certification
CCC
■Main features
| Rated working voltage (V) | 1P:230/400 AC |
| 2P,3P,4P:400 AC | |
| Rated current(A) | 63-125 |
| Rated frequency(Hz) | 50 |
| Number of poles | 1P,2P,3P,4P |
| Breaking capacity(kA) | 10 |
Keywords:
DZ47-125 High Current Circuit Breaker
