DZ47LE-125 High Current Leakage Circuit Breaker
Classification:
Product Introduction
Short circuit protection, overload protection, isolation function. Leakage protection function, over-voltage protection function
Product Details

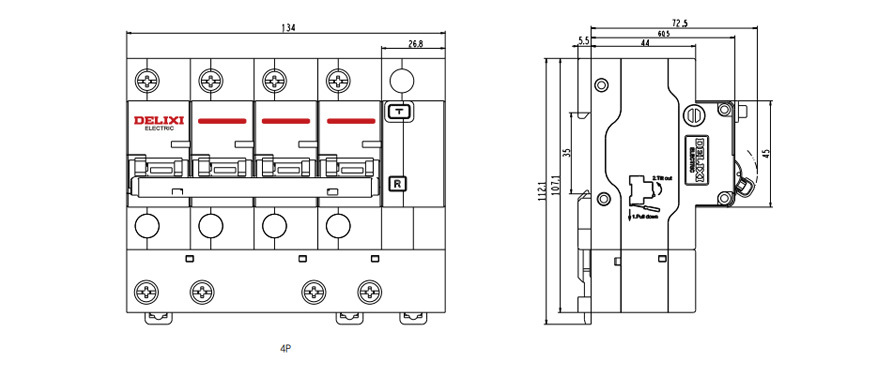

Shape and mounting dimensions

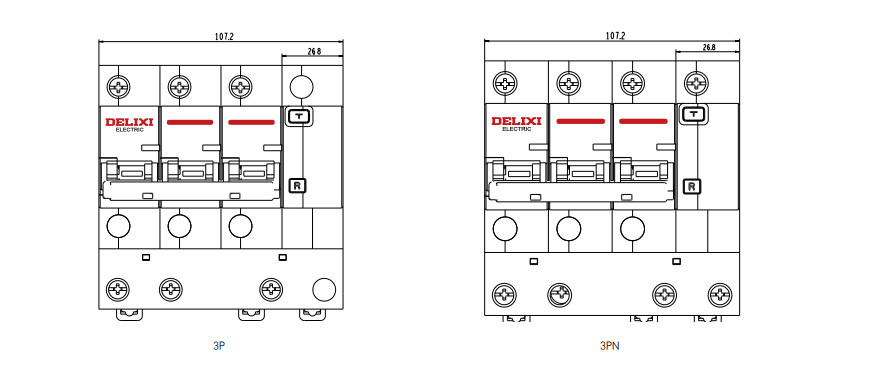

Dimensions

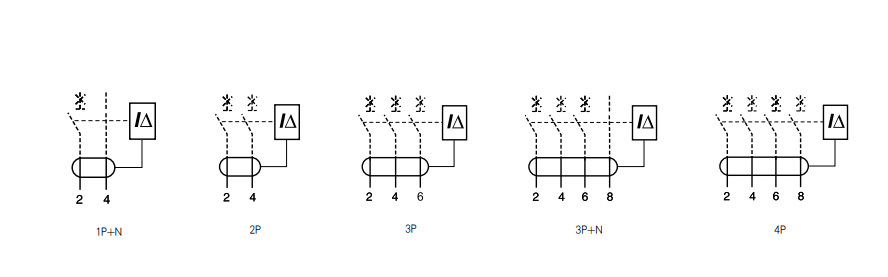

Wiring Diagram
Product Overview
■Main Functions
Short circuit protection, overload protection, isolation function. Leakage protection function, over-voltage protection function
■Conforms to standards
GB/T14048.2 IEC60947-2
■Conforms to the certification
cCC
■Main features
| Rated working voltage (V) | 1P+N,2P:230 AC 3P,3P+N,4P:400 AC |
| Rated current (A) | 63-125 |
| Rated frequency (Hz) | 50 |
| extremity | 1P+N.2P.3P,3P+N,4P |
| Breaking capacity (kA) | 10 |
| Rated residual action current (mA) | 30.50,75.100.300 |
| Overvoltage protection function (V) | (280±14)V AC(1P+N,2P,30A products can provide over-voltage protection) |
