DZ47sLE small leakage circuit breaker
Classification:
Product Introduction
Short circuit protection. Overload protection, leakage protection. Isolation function. Over-voltage protection (over-voltage models only).
Product Details

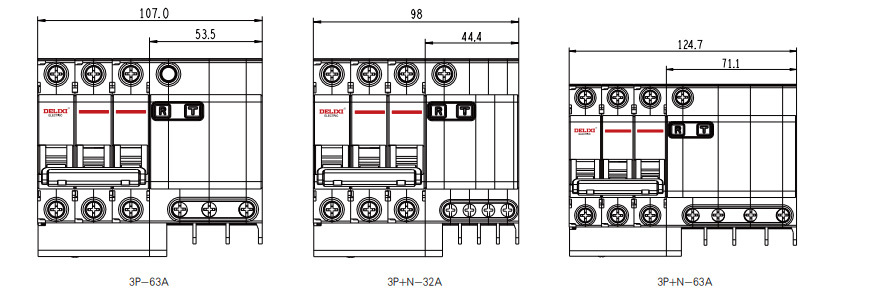

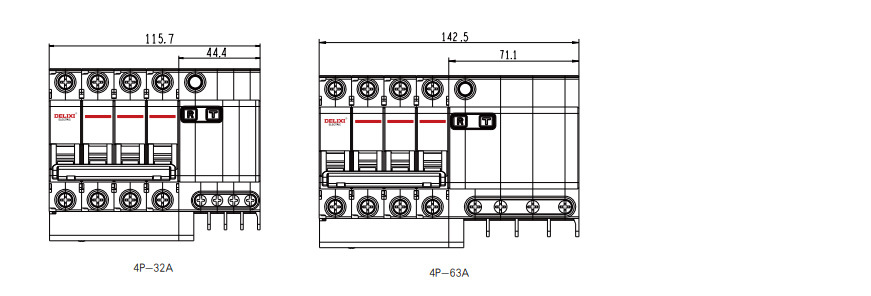

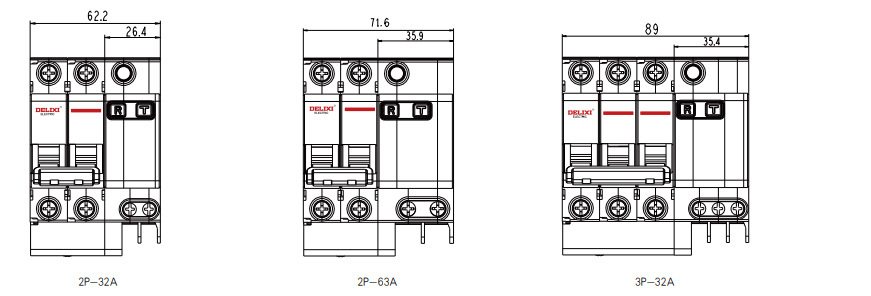

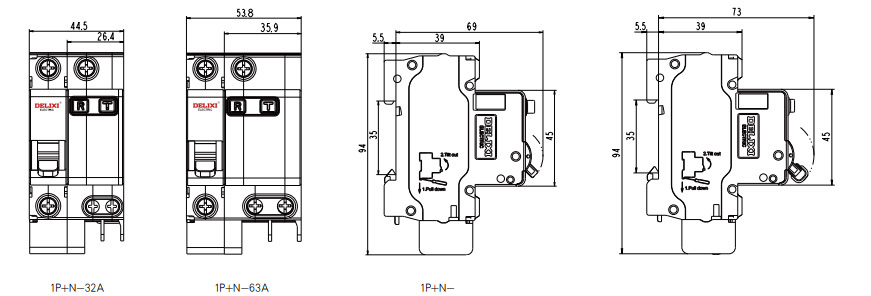

Shape and mounting dimensions
Dimensions
Wiring Diagram
Product Overview
■ Main Functions
Short circuit protection. Overload protection, leakage protection. Isolation function. Over-voltage protection (over-voltage models only).
■ Conformity to standards ■ Conformity to certificates
GB/T16917.1 IEC61009-1 CCC
■ Main features
| Rated working voltage (V) | 1P+N,2P:230 AC 3P,3P+N,4P:400 AC |
| Rated current(A) | 6-63 |
| Rated frequency(Hz) | 50 |
| Number of poles | 1P+N.2P.3P,3P+N,4P |
| Breaking capacity(kA) | 6 |
| Rated residual action current(mA) | 30.50,75.100.300 |
| Over-voltage protection function(V) | (280±14)VAC (only for 1P+N,2P,C type products) |
