DZ47sZ DC Plastic Case Circuit Breaker
Classification:
Product Introduction
Product Details
DZ47sZ small DC circuit breaker is used for overload protection, short circuit protection and infrequent conversion of DC lines or equipment in the Pilot series of terminal products. And it can be widely used in communication power supply, new energy charging pile, electric power system, DC power supply, rail transportation, ships and metallurgy and many other fields.

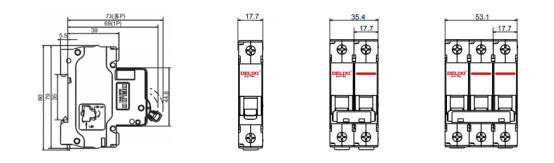

Shape and mounting dimensions

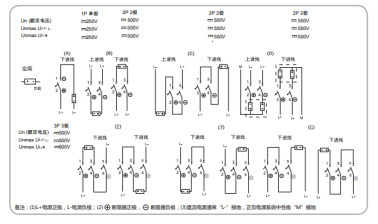

Wiring Diagram
Technical Parameters
Electrical Characteristics
| Rated insulation voltageU (V) | 500 |
| Maximum working voltageUe (V) | 1P DC250V 2P/3P DC500V |
| Rated short-circuit capacitylcn (kA) | 6 |
| Rated shock withstand voltage Uimp(1.2/50) (kV) | 4 |
| Dielectric test voltage | 2kV (50/60Hz, 1min) |
| Isolation function | have |
| Contamination level | 2 | |
| Forms of decoupling | thermal magnetic detachment | |
| Thermal Magnetic Decoupling Characteristics | B-curve | Protecting loads with low short-circuit currents Tripping characteristics: Instantaneous tripping range (4.4-6.6)In |
| C-curve | Protects conventional loads and distribution cables Tripping characteristics: Instantaneous tripping range (6.8~10.2)In |
|
| Electrical and Mechanical Accessories | ||
