LXJMH travel switch
Classification:
Product Introduction
Product Details
Mainly applicable to the cross 50Hz/60Hz, rated operating voltage AC380V, DC22
0V and the following electrical circuits, used in three-dimensional garages, plastic machines, printing and packaging, automated assembly equipment, textile machines, food and other fields.
Installation and use
Commissioning and operation

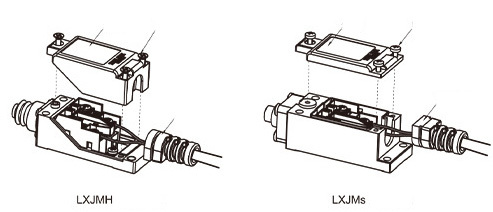

-Before installation, check whether the technical parameters on the nameplate of the product are consistent with the conditions of use.
-Loosen the outer cover screws and remove the outer cover (be careful not to lose the gasket).
-Thread the wires through the terminal block and tighten the wires with the terminal screws (tightening torque: 0.6-0.8N-m).
-Insert the terminal sleeve into the groove of the cover/case, install the cover and tighten the screws (tightening torque: 0.25-0.35 N-m).
-After the installation is completed, check whether there is any stagnation in the movement of the operating mechanism to ensure that the movement is flexible and smooth.
